City 1.4
Code: 4KOE23052 4KOE23053 Choose variantRelated products
Product detailed description

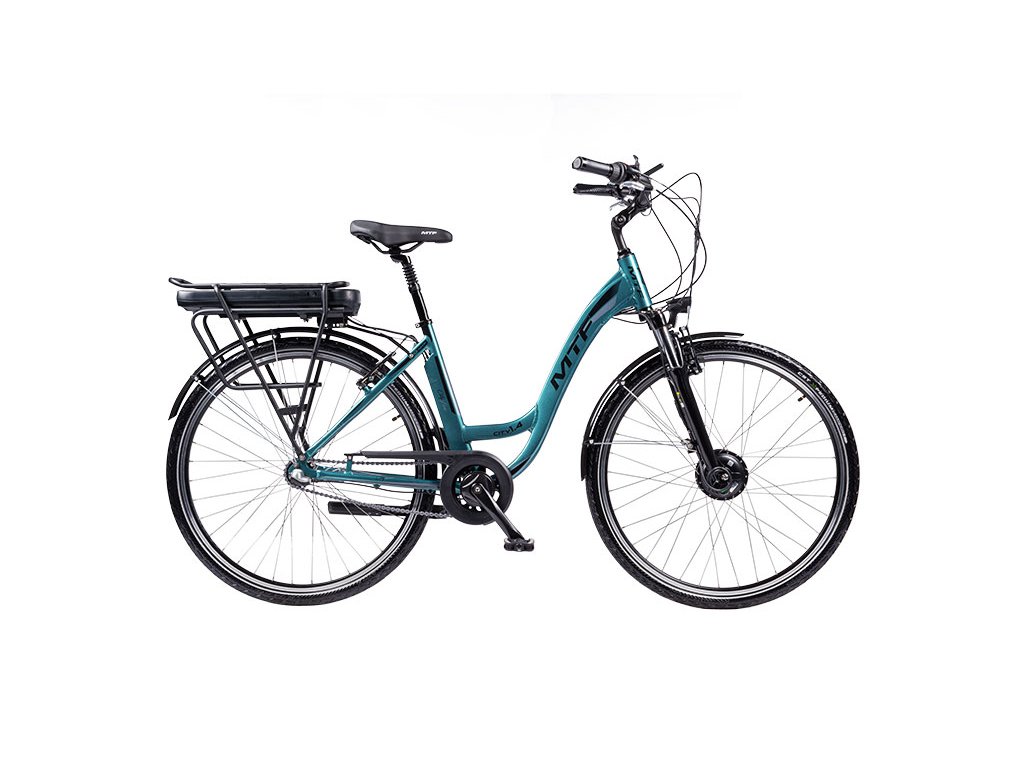

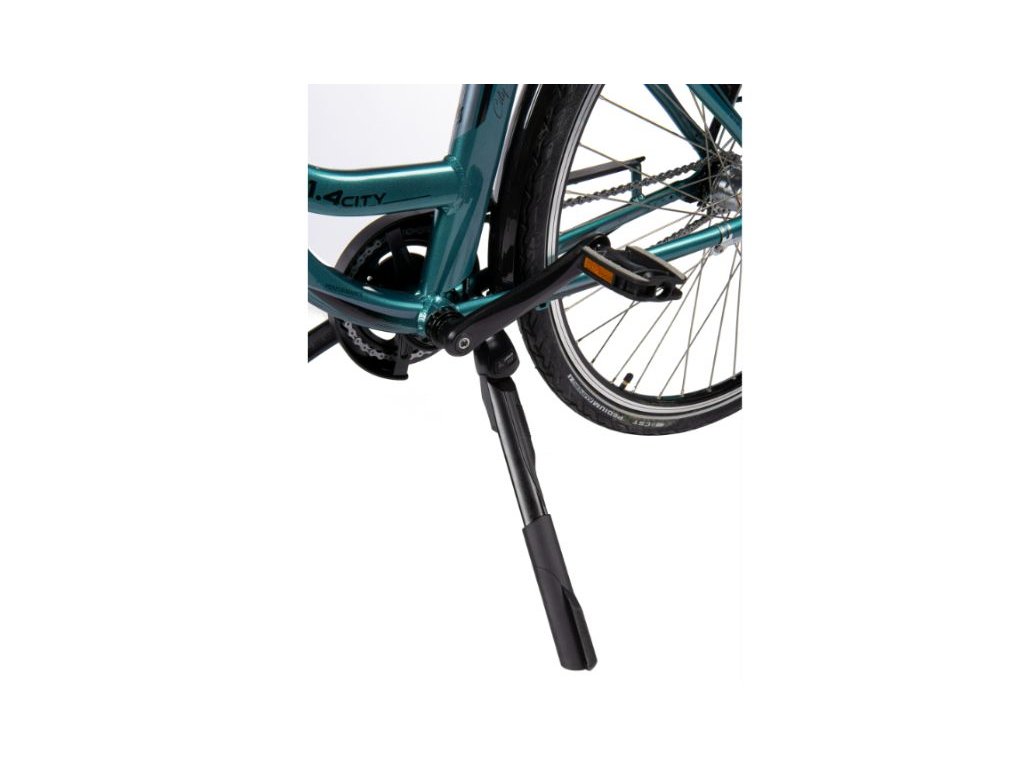

A budget version with front engine and rear-mounted battery, perfect for trips throughout the city, offering up to 110 km on a single charge with a 468 Wh battery. Wheel diameter 28“ | Frame size 18“ and 20“ | Shifters Shimano Nexus 3 Shift Lever SLC3S41 | Shifting Shimano Nexus SG-3C41, 3 speeds | Suspension fork ZOOM, 65 mm travel | V-brakes Clarks CLK-115X2 | Tyres CST Xpedium Ampero 47-622 | Saddle MTF Comfort+ | Controls on LED display (5 levels of assistance) | Free kickstand and lights
Additional parameters
| Category: | Electric bikes & scooters |
|---|---|
| Frame / Rahmen: | 18" and 20" |
| Wheel / Räder: | 28" |

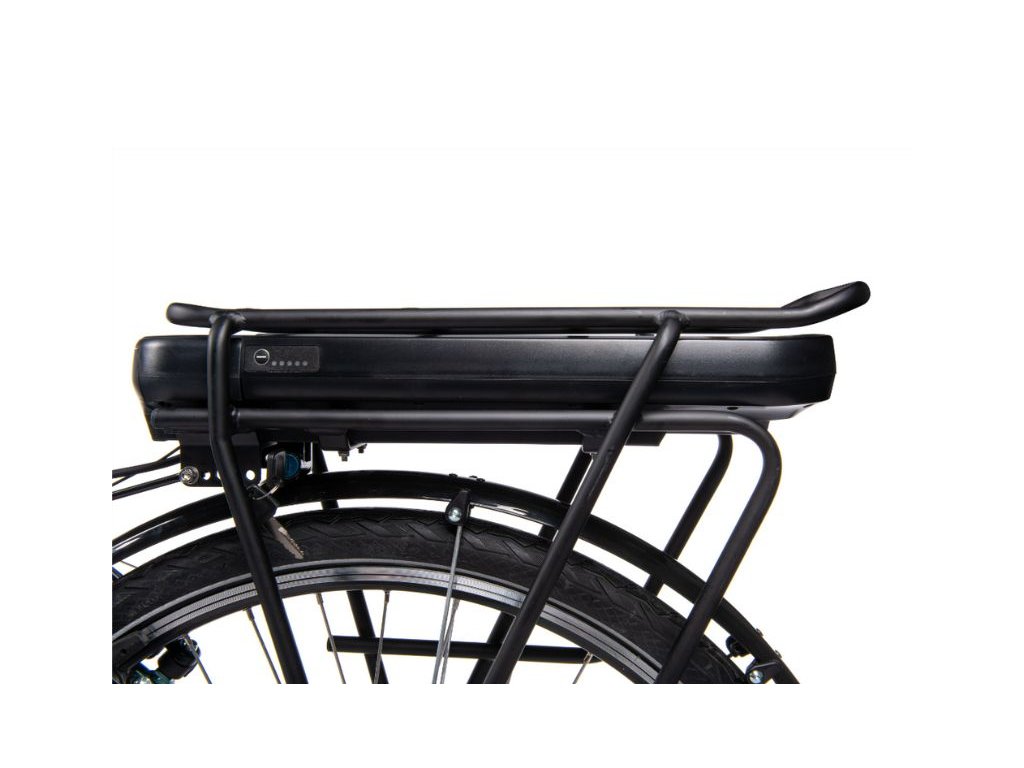

| Recommended Battery / Empfohlene Batterie: | Li-ion 36V/13 Ah (468 Wh) SAMSUNG Cells / Zellen |
| Max. Range / Max. Reichweite: | 110 km |
| Motor: | Front hub motor BAFANG 250W / max.500W, 55 Nm |
| Speed / Geschwindigkeit: | With assist. up to 25 km/h / Mit Unterstützung. bis zu 25 km/h |

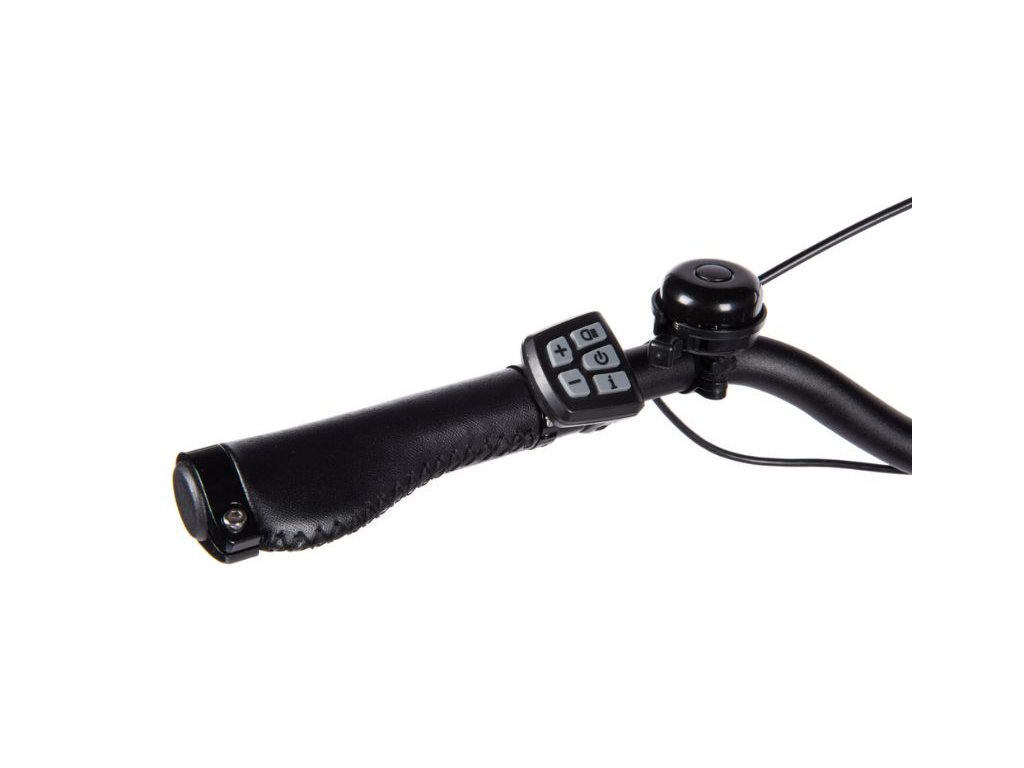

| Display: | LED display 5 degrees of assistance / Assistance Stufen |
| Loading capacity / Lastgrenze: | 120 kg |
| Weight /Gewicht: | 20,5 kg |
| Fork / Gabel: | ZOOM RLO, travel 65 mm |
| Crankarm / Pedalarm: | PROWHEEL (38 Teeth/Zähne), Crankarm / Pedalarm 170mm |
| Rear Derailleur / Schaltwerk: | SHIMANO NEXUS 3s SG-3C41 |
| Shifter / Schalthebel: | SHIMANO NEXUS 3 Shift Lever SL3S41 |
| Front Derailleur / Umwerfer: | No / Nein |
| Cassette / Zahnkranzpaket: | SHIMANO SM-GEAR |
| Chain / Kette: | CN-NX10 |
| Brakes / Bremsen: | Clarks CLK-115X2, V-Brakes/ Bremsen |

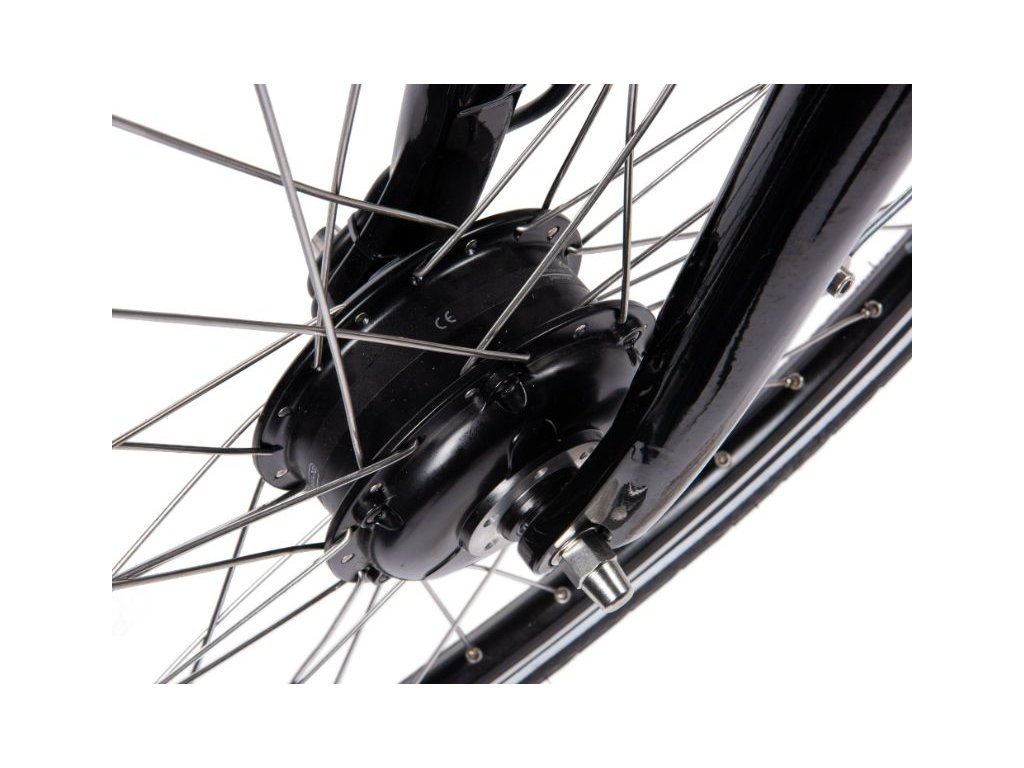

| Front Hub / Vorderradnabe: | BAFANG FM G320.250.D |
| Rear Hub / Hinterradnabe: | SHIMANO Nexus Inter3 SG-3C41 |
| Rims / Felgen: | ALEX RIMS, 36H, 622x20 |
| Spokes / Speiche: | SAPIM, reinforced (13G, diameter 2.3 mm), stainless black /SAPIM, verstärkt (13G, Durchmesser 2,3 mm), rostfr. Stahl schwarz" |
| Tires / Reifen: | CST Xpedium Ampero 47-622 |
| Pedals / pedalen: | Alu, ball bearings / Alu, Kugellager |
| Grips / Griffe: | MTF Comfort, leather imitation with stitching / Kunstleder mit Nähten |
| Handelbars / Lenker: | MTF City Bike (620 x 25,4 mm) |
| Stem / Vorbau: | MTF adjustable / einstellbar (25,4 x 180 mm, lenght / Länge 90 mm) |
| Headset / Steuersatz: | NECO, threaded / gewinde 1 1/8'', black / Schwarz |
| Seatpost / Sattelstütze: | MTF (27,2 / 350 mm) |

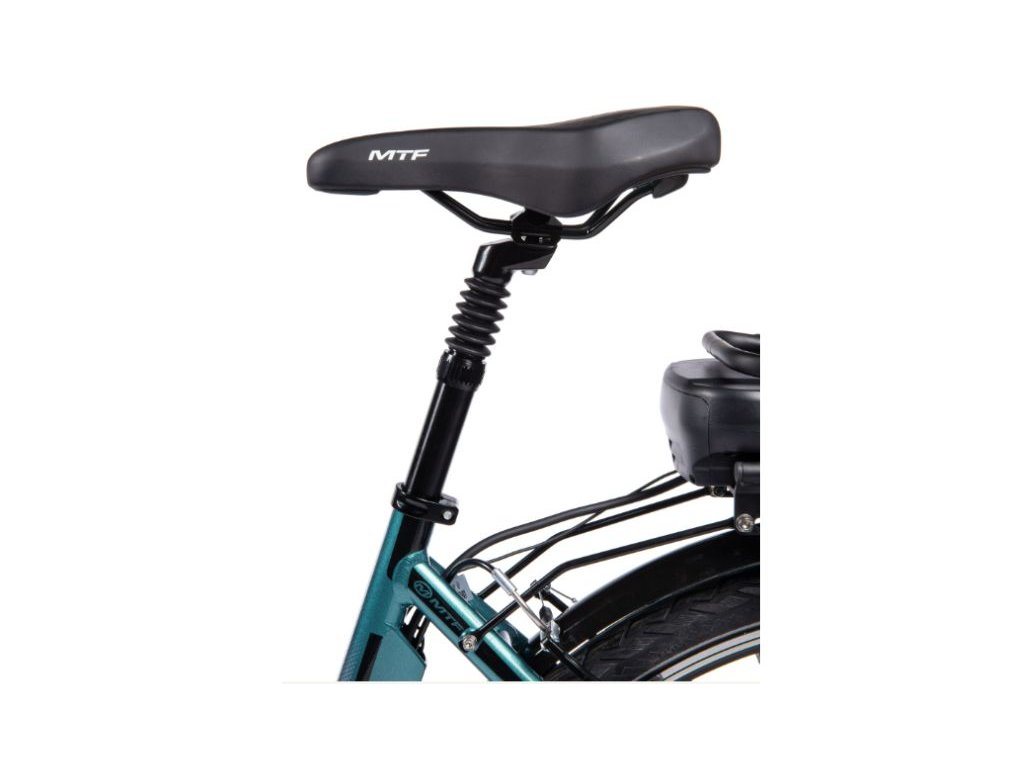

| Saddle / Sattel: | MTF Comfort+ |
| Charger / Ladegerät: | MTF 36V / 2A |
| Product weight: | 19Kg |
| Package dimensions: | 90x30x150cm |
