Grand 2.4 EVO
Code: 4KOE24002 4KOE24003 Choose variantRelated products
Product detailed description
A 26" city e-bike for men and women of all generations. It's crafted in a sleek design, with a motor in the rear hub and a Samsung battery fully integrated into the frame.
It is available in 17" and 19" frame sizes. It is also suitable for people of smaller stature as the lack of a top frame tube makes it very easy to get on.

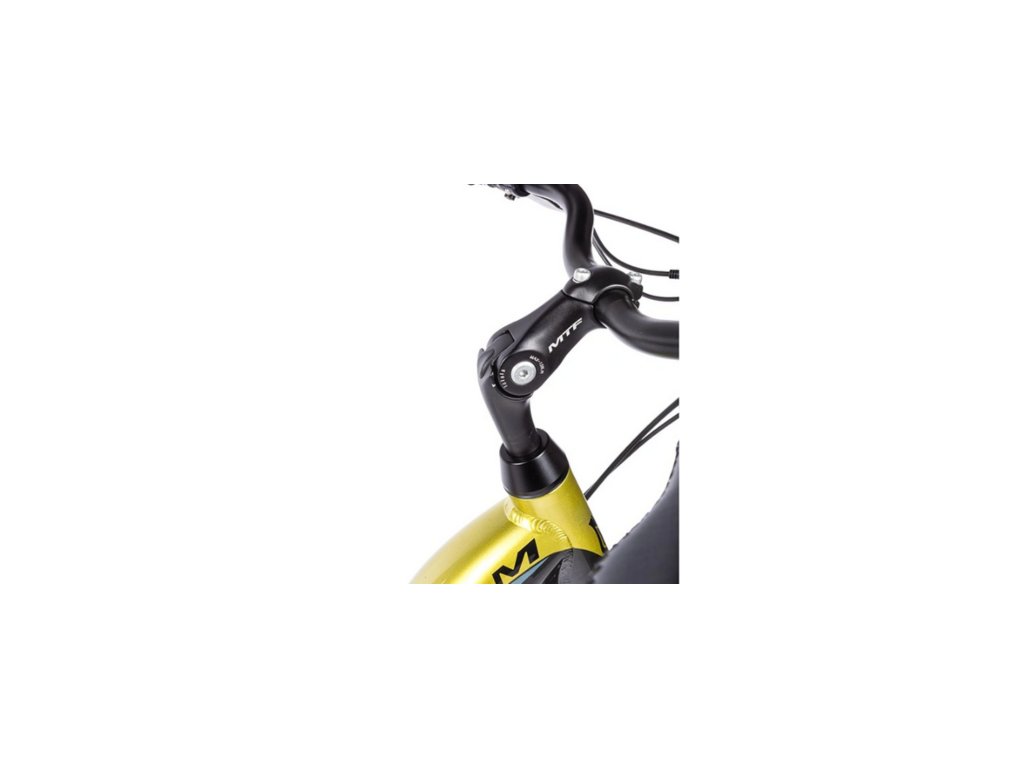

You will mainly use this model on roads and paved paths, where you will enjoy the maximum riding comfort of this e-bike. The equipment includes a comfortable saddle, mudguards, lights, bell and also a practical rack or stand. Thanks to the adjustable stem, you can easily adjust the handlebar height to suit your needs. Even better grip is guaranteed by the quilted grips made of imitation leather.
Shifting is handled by a seven-speed Shimano Tourney derailleur, while minor terrain irregularities are eliminated by the suspension Zoom fork. Reliable braking performance is ensured by Tektro V-brakes.
The level of motor assistance is regulated on the LED display, where you can choose from five levels of support. It can be adjusted simply using the two plus and minus buttons.
The Grand 2.4 Evo comes with a choice of two battery types, which differ in capacity and range. If you choose the more powerful one with a capacity of 13 Ah, you can travel up to 100 km on a single charge.
You get a free kickstand with this e-bike.
Additional parameters
Category: | E-bikes |
---|---|
Material Frame: | Alu 6061 |
Frame: | 17" and 19" |
Wheel: | 26" |
Motor: | BAFANG 250W/max.500W, in Rear Hub |
Recommended Battery: | SAMSUNG, Li-ion 36V/17,5 Ah (630 Wh) |
Max. Range: | 140 km |
Speed: | With assist. up to 25km/h |
Display: | LED display 5 degrees of assistance |
Loading capacity: | 120 kg |
Fork: | ZOOM, travel 45 mm |
Crankarm: | PROWHEEL (42 Teeth), Crankarm 170mm |
Rear Derailleur: | SHIMANO Tourney RD-TY300D |
Shifter: | SHIMANO SL-TX50, 7 Speed |
Cassette: | SHIMANO MFTZ500 14-28, 7s |
Chain: | Shimano KCNLG500124Q |
Brakes: | TEKTRO C310, V-Breaks |
Front Hub: | NOVATEC 751 DSE |
Rear Hub: | Rear engine |
Rims: | ALEX RIMS, 36H, 559x20 |
Spokes: | SAPIM, reinforced (13G, diameter 2.3 mm), stainless black |
Tires: | CST 26*1,75 |
Pedals: | Alu, ball bearings |
Grips: | MTF Comfort, leather imitation with stitching |
Handelbars: | MTF City Bike (620 x 25,4 mm) |
Stem: | MTF adjustable (25,4 x 180 mm, lenght 80 mm) |
Headset: | NECO, threaded 1 1/8'', black |
Seatpost: | MTF (27,2 mm / 350 mm) |
Saddle: | MTF Comfort+ |
Charger: | MTF 36V / 3A |
