Mount 6.4 ltd.
Code: 4KOE23062 4KOE23063 Choose variantRelated products
Product detailed description

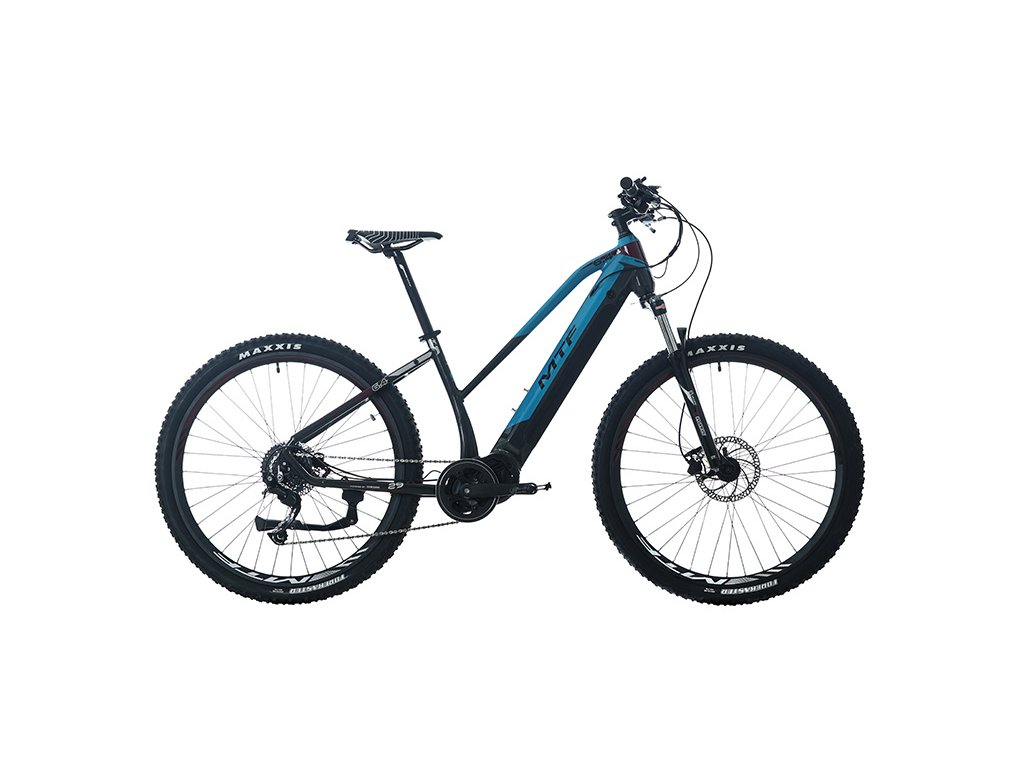

Mid-engine mountain model on 29er wheels for both men and women. It is available in 17" and 19" frame sizes, and thanks to the reduced upper frame tube, even shorter people will appreciate it.
It is an e-bike suitable for off-road and cycle paths. Optimum support in all assistance modes (5 in total) is provided by the new Bafang M410 central motor with a torque of 80 Nm and a maximum power of 500 W. The Samsung battery is fully integrated in the frame. You can choose from four types, including an extra strong battery with a capacity of 25 Ah, with which you can travel up to 200 km on a single charge.
Reliable shifting is ensured by Shimano Alivio derailleur (9 speeds), Tektro hydraulic disc brakes ensure perfect braking effect. The SR Suntour suspension fork lockable from the handlebars with 100 mm travel, as well as premium Maxxis tires, will support you in the off-road. The level of motor assistance is regulated using the + and - buttons located on the handlebars, all driving information is displayed on the color LCD display. It also shows the current level of assistance.
Additional parameters
Category: | Mountain bikes |
---|---|
Frame: | Alu 6061 |
Frame size: | 17" and 19″ |
Wheel size: | 29'' |
Recommended Battery: | Li-ion 36V/20 Ah (720 Wh) SAMSUNG Cells / Zellen |
Max. range: | 160 km |
Motor: | central with pressure sensor BAFANG M410 (250W/max.500W, 80 Nm) |
Speed: | With assist. up to 25km/h / Mit Unterstützung. bis zu 25 km/h |
Display: | Color LCD display, 5 degrees of assistance / Assistance Stufen |
Max. load capacity: | 120 kg |
Weight: | 19,1 kg |
Fork: | SR SUNTOUR XCM RLO, travel 100 mm, lockable / abschließbar |
Crankarm: | BAFANG (38 Teeth/Zähne), Crankarm / Pedalarm 170mm |

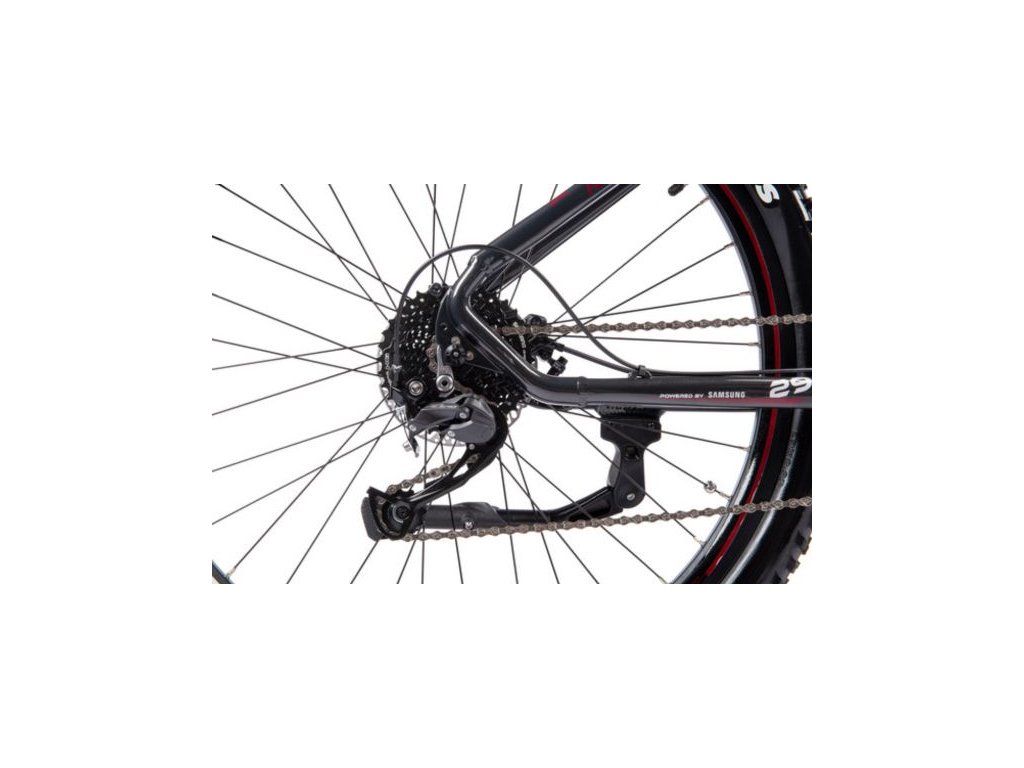

Rear Derailleur: | SHIMANO Alivio RD-M3100 |
Shifter: | SHIMANO Alivio SL-M3100, 9 Speed |
Cassette: | SHIMANO CSHG200 11-36, 9s |
Chain: | KMC E9 |
Brakes: | TEKTRO HD-M285, Hydraul. Disc Brake/Scheibenbremse |
Front hub: | NOVATEC D761DSE |
Rear hub: | NOVATEC D762TSE |
Rims: | ALEX RIMS, 29”*1.75*14G*36H |
Spokes: | SAPIM, reinforced (14G, diameter 2 mm), stainless black |
Tires: | MAXXIS FOREKASTER 29*2.35 |
Pedals: | Alu, expanded, ball bearings |
Grips: | MTF SportGrip |
Handlebars: | MTF Sport (700 x 31,8 mm) |
Stem: | MTF Sport (31,8, lenght / Länge 60 mm) |
Head composition: | NECO, semi-integrated / halbintegriert 1 1/8'', black / Schwarz |
Seat post: | MTF (30,4 / 400 mm) |
Seat: | MTF Comfort man |
Charger: | MTF 36V / 3A |
