Mount 8.4 EVO Ltd.
Code: 4KOE24013 4KOE24014 Choose variantRelated products
Product detailed description

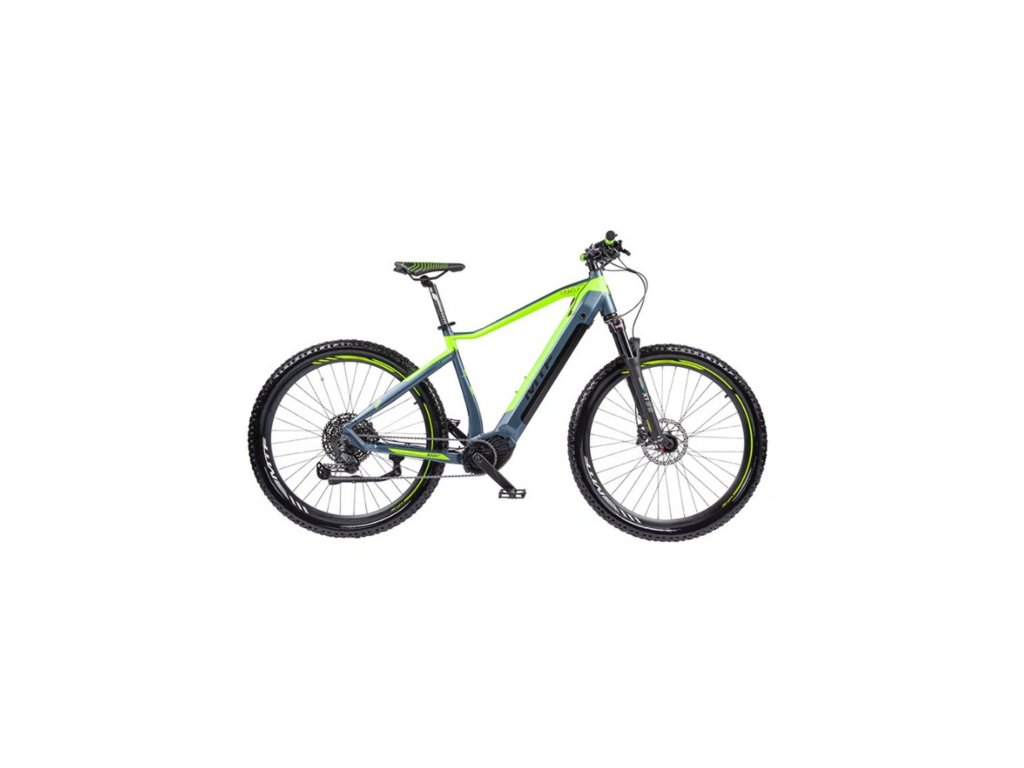

A mountain e-bike with premium components and a telescopic seatpost suitable for men of a higher build and weight. In addition to the 20" frame size, it is also available in the superior 22" size, which is optimal for a man almost two metres tall. Thanks to reinforced welds in the frame and a harder weave, it also has a load capacity of up to 140 kg.
The 29" wheel diameter model has a premium Bafang M510 mid-motor with 95 Nm of torque and a maximum power output of 750 W. This makes it the most powerful mid-motor on the market. Thanks to the extremely sensitive torsion sensor, the motor excels with incredibly smooth operation in every level of assistance (5 to choose from in total).
This is an e-bike suitable for even the toughest terrain. In addition to the powerful motor, it features a Shimano Cues 11-speed derailleur, SR SUNTOUR X1 BOOST Air LOR locking air fork with 120 mm travel, Shimano 4-piston hydraulic disc brakes and Maxxis tires.
You can monitor all the data on the level of assistance (5 levels to choose from), battery level and other riding parameters on the colour LCD display with Bluetooth and USB connectivity and possible GPS display. In addition, the model has a built-in module that can be used to track the e-bike in case of theft.
Additional parameters
| Category: | Mountain bikes |
|---|---|
| Material Frame: | Alu 6061 |
| Frame: | 20" and 22" |
| Wheel: | 29" |
| Recommended Battery: | Li-ion 36V/25 Ah (900 Wh) SAMSUNG Cells |
| Max. Range: | 160 km |
| Motor: | central with pressure sensor BAFANG M510 (250W/max.600W, 95 Nm) |
| Speed: | With assist. up to 25km/h |
| Display: | Color LCD smart bluetooth display, 5 degrees of assistance |
| Loading capacity: | 140 kg |
| Weight: | 21,9 kg |
| Fork: | Air fork SR SUNTOUR X1 BOOST Air LOR, travel 120 mm, lockable |
| Crankarm: | BAFANG (38 teeth), Crankarm 170mm |
| Rear Derailleur: | SHIMANO CUES RD-U6000GS 10/11s |
| Shifter: | Shimano CUES SL-U600011RC 11 speeds |
| Cassette: | Shimano CUES CS-LG400 11spd 11-50T |
| Chain: | Shimano CN-LG500 |
| Brakes: | Shimano BR-MT410 Hydraulic disc |
| Front Hub: | NOVATEC D041 |
| Rear Hub: | NOVATEC D762TSE |
| Rims: | STARS CIRCLE, 36H |
| Spokes: | reinforced for stable knitting 14G |
| Tires: | MAXXIS FOREKASTER 29,5*2,35 |
| Pedals: | Alu, expanded, ball bearings |
| Grips: | MTF SportGrip |
| Handelbars: | MTF Sport (31,8/740 mm) |
| Stem: | MTF Sport (31,8, lenght 60 mm) |
| Headset: | NECO, semi-integrated 1 1/8'', black |
| Seatpost: | MTF (30,4 / 400 mm) |
| Saddle: | MTF NoPressure Sport |
| Charger: | MTF 36V / 3A |
