B2B Only - register your company to receive full benefits (of becoming our business partner)

Mount 8.4 ltd. (22)

Code: 4KOE23068 4KOE23069 Choose variant
Brand: MTF
Sold out In stock (1 pcs) Choose variant
Size
Chosen variant is not available. Reset selected parameters.

Battery not included. Recommended batteries are listed for each model.

Detailed information

Product detailed description

Electric mountain bike with premium components suitable for men of higher stature and weight. In addition to the 20" frame size, it is also available in an over-standard size of 22", which is also suitable for a person almost two meters tall. Thanks to reinforced welds in the frame and a harder string, it also has a load capacity of up to 150 kg.
The model with a wheel diameter of 29" has a premium Bafang M510 mid-motor with a torque of 95 Nm and a maximum power of 750 W. This makes it the most powerful mid-motor on the market. Thanks to the extremely sensitive torsion sensor, the engine excels with incredibly smooth operation in each level of assistance (a total of 5 to choose from).
This is an electric bike suitable even for the most difficult terrain. In addition to the powerful engine, you will find an eleven-speed Shimano Deore derailleur, SR Suntour air fork with 120 mm travel, Tektro 4-piston hydraulic disc brakes or Maxxis tires.
You can monitor all information about the level of assistance (a total of 5 levels to choose from), battery status and other driving parameters on the color LCD display.

Additional parameters

Category: Mountain bikes
Material Frame / Rahmen: Alu 6061
Frame / Rahmen: 20" and 22"
Wheel / Räder: 29"
Recommended Battery / Empfohlene Batterie: Li-ion 36V/25 Ah (900 Wh) SAMSUNG Cells / Zellen
Max. Range / Max. Reichweite: 200 km

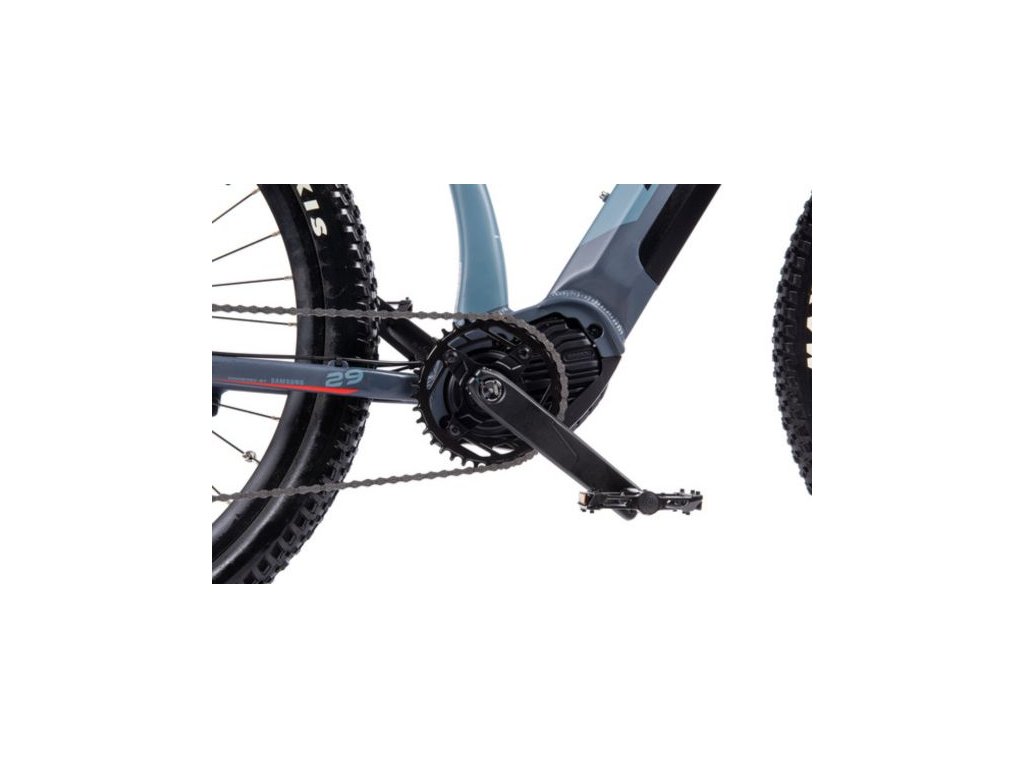

Motor: central with pressure sensor BAFANG M510 (250W/max.750W, 95 Nm)
Speed / Geschwindigkeit: With assist. up to 25km/h / Mit Unterstützung. bis zu 25 km/h
Display: Color LCD display, with the possibility of connecting an external device via USB
Loading capacity / Lastgrenze         : 150 kg
Weight /Gewicht: 19,5 kg
Fork / Gabel: SR SUNTOUR X1 BOOST AIR LOR, travel 100 mm,lockable / abschließbar
Crankarm / Pedalarm: BAFANG (38 Teeth/Zähne), Crankarm / Pedalarm 170mm

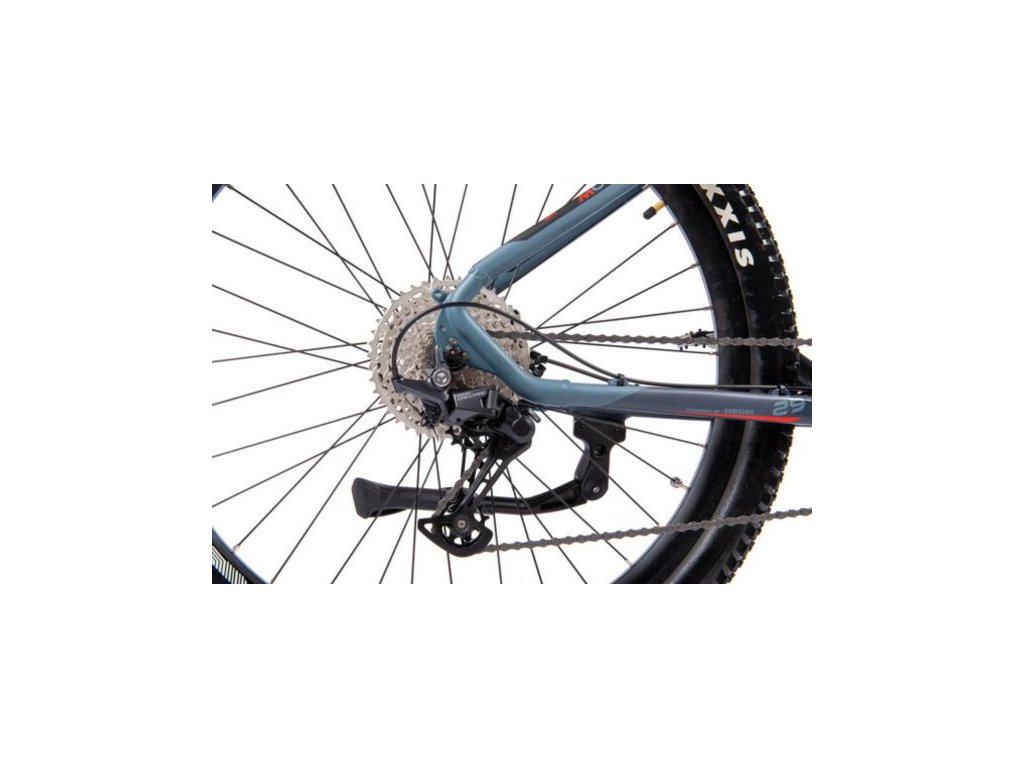

Rear Derailleur / Schaltwerk: SHIMANO Deore RD-M5100
Shifter / Schalthebel: SHIMANO Deore SL-M5100, 11 Speed
Cassette / Zahnkranzpaket: SHIMANO CSM5100 11-42,11s
Chain / Kette: KMC e11 Sport
Brakes / Bremsen: TEKTRO HD-M535 Gemini SL, Hydraul. Disc Brake/Scheibenbremse
Front Hub / Vorderradnabe: NOVATEC D041SB-15-36H
Rear Hub / Hinterradnabe: NOVATEC D762TSE-B5-36H
Rims / Felgen: ALEX RIMS, 29”*1.75*14G*36H
Spokes / Speiche: SAPIM, reinforced (14G, diameter 2,35 mm), stainless black
Tires / Reifen: MAXXIS FOREKASTER 29*2,35
Pedals / pedalen: VELGO Alu, expanded / erweitert, ball bearings / Kugellager
Grips / Griffe: MTF SportGrip
Handelbars / Lenker: MTF Sport (760 x 31,8 mm)
Stem / Vorbau: MTF Sport (31,8, lenght / Länge 60 mm)vvvvvvvvvvvvvvvv
Headset / Steuersatz: NECO, semi-integrated / halbintegriert 1 1/8'', black / Schwarz
Seatpost / Sattelstütze: MTF (30,4 / 400 mm)
Saddle / Sattel: MTF NoPressure Sport
Charger / Ladegerät: MTF 36V / 3A

Mount 8.4
